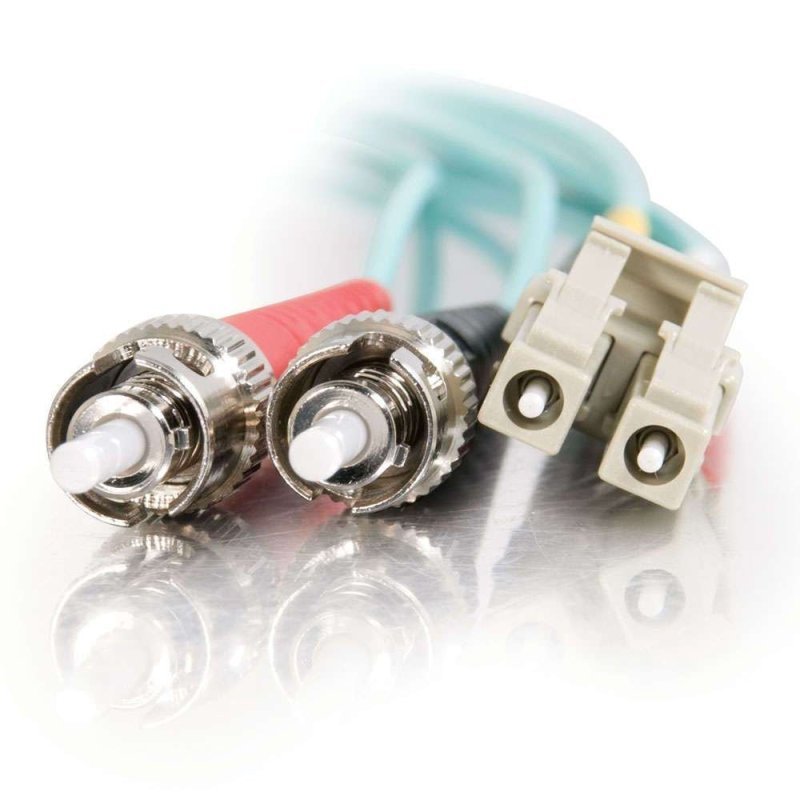

Product Description This OM3 Duplex Multimode Fibre Optic Cable is ideal for connecting 10GBase-SR, 10GBase-LRM, SFP+ and QSFP+ transceivers for 10 gigabit network connections. This cable has a LSZH jacket which protects from toxic and corrosive gases in poorly ventilated spaces and other areas where it is most critical. This cable also provides backward compatibility with existing 50/125 equipment and the performance headroom required to support LED and VCSEL laser light sources, and 10 Gigabit Ethernet applications. The Low Smoke Zero Halogen (LSZH / LS0H) jacket is composed from materials that lessen the smoke and halogen emissions when the cable is exposed to extreme temperatures. Connectors: o LC Connector Dimensions: 10. 75mm Height x 12. 5mm Width x 50mm Depth (with installed duplex clip) o ST Connector Dimensions: 9. 8mm Height x 19. 6mm Width x 59mm Depth Cable: o Optical Multimode 3 (OM3) fibre supporting 2000 MHz. km EMB at 850 nm. o 10 Gigabit transfers up to 300 metres using 850 nm VCSEL source o Maximum Connector Loss: 0. 50 dB o Typical Connector Loss: 0. 30 dB o Typical Return Loss: -25 dB o Buffer Material: PVC o Buffer OD: 900 um o Jacket Material: LSZH PVC (OFNR riser-rated) o Jacket OD: 1. 8 mm o Installation Tensile Load: 100 N (445 lbs) o Long-Term Tensile Load: 50 N (222 lbs) o Maximum Tensile Load: 100 N/cm o Installation (Loaded) Minimum Bend Radius: 5. 0cm (1. 97in) o Long-Term (Unloaded) Minimum Bend Radius: 3. 0cm (1. 2in) o Crush Resistance: 750 N/cm o Impact Resistance: 1, 000 cycles o Flex Resistance: 5, 000 cycles o Attenuation at 1300 nm: 1. 0 dB/km o Attenuation at 850 nm: 3. 5 dB/km o Operating Temperature: -20?C to +70?C
