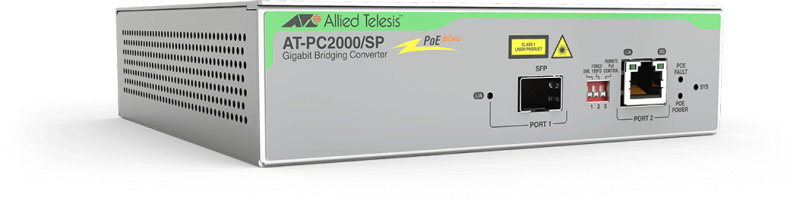

Allied Telesis PC2000/SP Transceiver/Media Converter 1 x Po E+ (RJ-45) Port Allied Telesis PC2000/SP Transceiver/Media Converter - 1 Port(s) Network (RJ-45) - 1 x Po E+ (RJ-45) Ports - Optical Fiber, Twisted Pair - Multi-mode Fiber - Gigabit Ethernet - 10/100/1000Base-T, 1000Base-X - 1 x Expansion Slots - 1 SFP Slots - Standalone, Wall Mountable Powering Remote Devices Allied Telesis PC200/2000 Series media converters are the ideal solution for powering remote devices such as IP phones, video cameras, wireless access points, etc., which are more than 100m from a Power over Ethernet switch. The PC2000/SP features a 100MB or 1000MB SFP port and a 10/100/1000T twisted-pair port. Allied Telesis offers a wide variety of SFPs featuring multimode, single mode and Bi Di optics. The fixed fiber-optic port PC200x models features an SC connector for 100FX and 1000SX or LC connector for the 1000SX, capable of operating at a distance of up to two kilometers over multi-mode fiber. The twisted-pair port has an RJ-45 connector with a maximum operating distance of 100 meters. In addition to transmitting data, the twisted-pair port also injects power down the cable, allowing a remote Po E+ Powered Device to operate without the need of any additional power source. All Po E+ Devices (IEEE802. 3at compliant) are supported, as the PC200x Po E+ Series can deliver a full 30W of power to the remote device. Remote Power Cycle The PC200/2000 Series offers feature where when the fiber port is dropped the TX Po E+ port will cycle power. It allows a remote administrator to login in a switch and disable the switch alliedtelesis. com port in which the PC200/2000 Series is attached and will have the remote Po E+ device to lose power. This can be useful when an administrator needs to reset a remote device without actually physical going to the location. VLAN Support Many backbone switch products support the industry-standard IEEE 802. 1Q specification for Virtual LANs (VLANs) that sends extra-long data packets
